Rigid PCB Printed Capacitive Membrane Switches With Embedded Backlighting LED

Rigid PCB Printed Capacitive Membrane Switches With Embedded Backlighting LED

  • High Light

    Rigid PCB Printed Capacitive Membrane Switches


    Capacitive Membrane Switches with Embedded Backlighting


    IP67 Capacitive Polyester Membrane Switches

  • Overlay
    PMMA 2.0mm
  • Back Adhesive
  • CapTouch Circuit
  • Waterproof Gasket
  • Backlit Tech.
    LGF Backlighting Technology
  • Color
  • Material
    Polyester, Polycarbonate
  • Operating Force
  • Operating Humidity
    35% To 85% RH
  • Operating Temperature
    0°C To +60°C
  • Panel Cutout
  • Type
    Capacitive Membrane Switches
  • Place of Origin
  • Brand Name
  • Certification
    UL, Rohs, Reach, CE
  • Model Number
  • Minimum Order Quantity
  • Packaging Details
    2pcs into a PP bag then into hard carton box.
  • Delivery Time
    15-16 working days
  • Payment Terms
  • Supply Ability

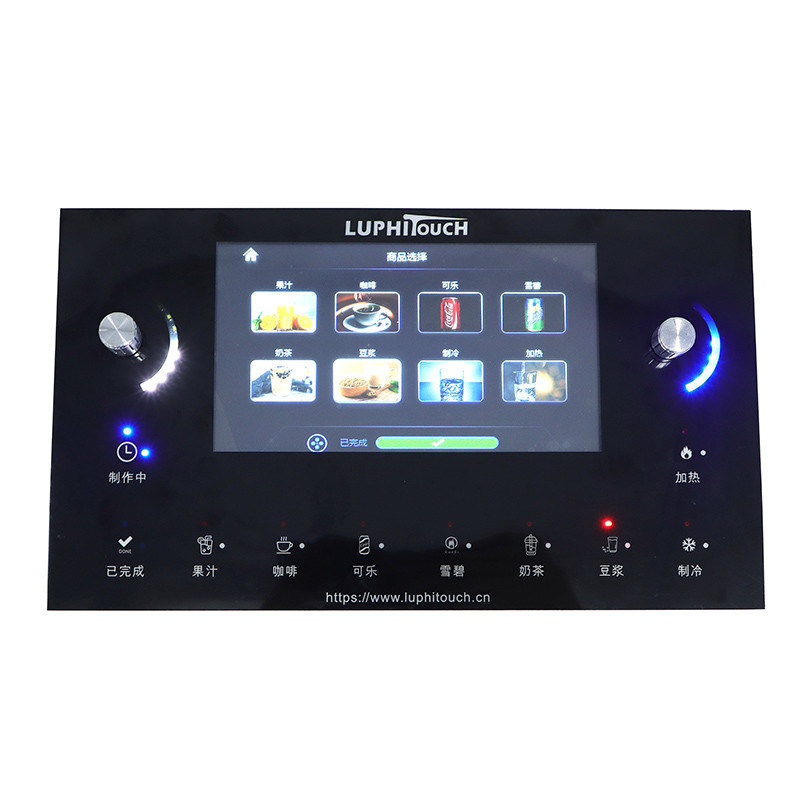

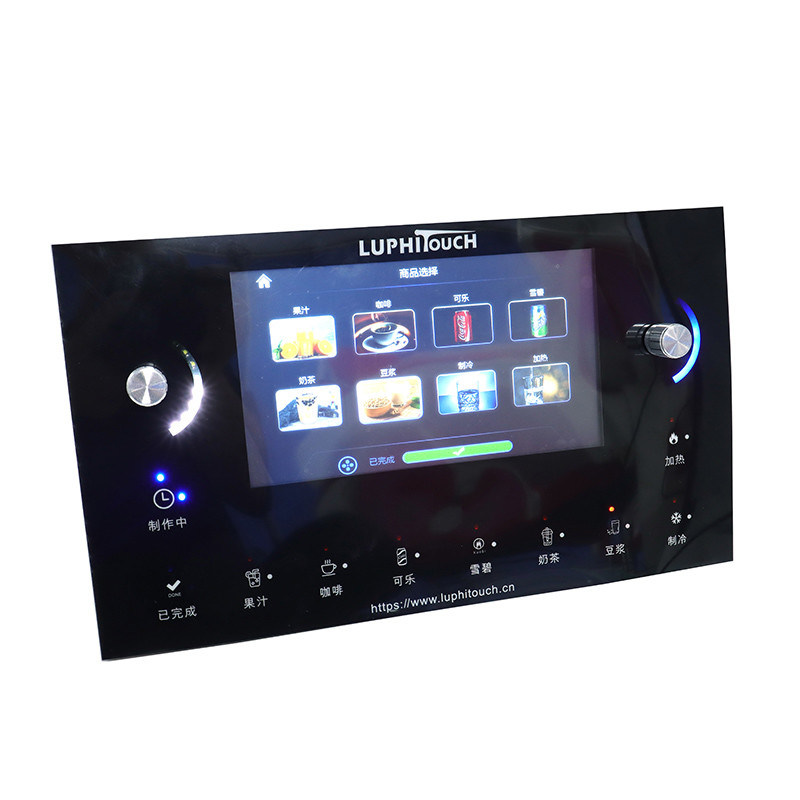

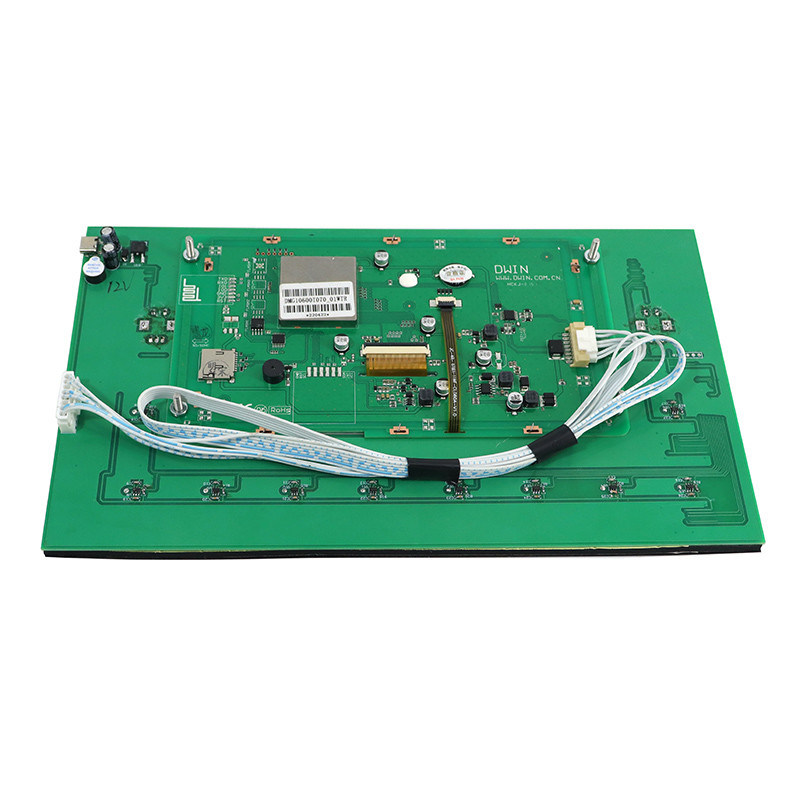

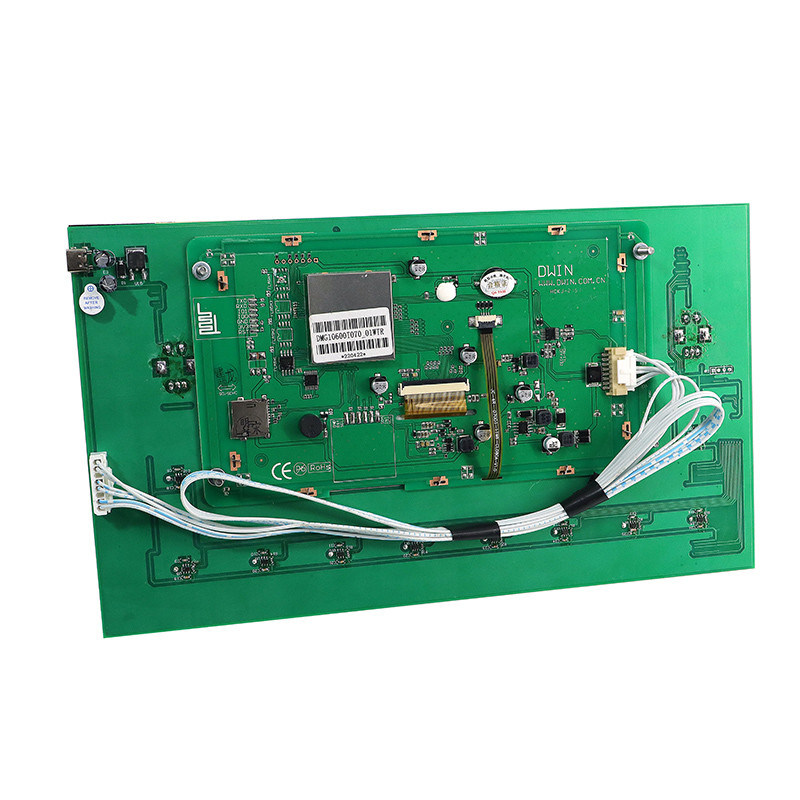

Rigid PCB Printed Capacitive Membrane Switches With Embedded Backlighting LED

Touch Display Module Touch Screen Keypad

Coverlay: PMMA 2.0mm;
CapTouch Circuit: transparent conductive ink printed PET circuit;
Backlighting Solution: embedded side firing backlighting LEDs wth LGP technology;
Waterproof: gasket structure;
Connector: 1.0mm pitch ZIF;
Rohs and Reach compliance;

Rigid PCB Printed Capacitive Membrane Switches With Embedded Backlighting LED 0

Capacitive touch membrane switches(capacitive switches) are widely used in household appliances, Automotives and consumer electronics industries nowadays in the world. We can see the CapTouch switches application in our kitchen room, dressing room, meeting room, new energy vehicles etc. The capacitive switches consists of front cover and below touch sensor circuit. Many materials can be used as the front cover for capacitive switches, like PC, PMMA, glass, PET etc. The sensor circuit also can be Polyester, copper FPC, rigid PCB and ITO. The capacitive switches also can combine with backlighting elements. Frankly speaking, most of capacitive switches have backlighting features.


LuphiTouch® has very strong R&D team. We are not only just can provide the normal capacitive switches customizing service, but also can provide high-end custom service. We have our own electronic engineers and software engineers. We can provide total solution for capacitive HMI modules. We can do from structure design, PCBA development, singlechip program development to compnents sourcing, assembly, testing and shipping one-stop services for your projects.


In aqddition, we can integrate the capacitive switches with LCDs, OLEDs together to provide customer better experience. We also can embed the Wifi, Bluetooth, heat sensor, IoT modules into our capacitive switches to provide our customer more advanced and value-added service.


Except for capacitive switches and capacitive HMI modules, we also provide single capacitve touch sensor circuit production service. Sometimes it is just a pure capacitive switch circuit, sometimes with connectors. By the way, we also can make the graphic icons and captouch sensors on the same PET layer. In addition, we also can make digital printed(with color gradient) capacitive switches.
