LGF Backlighting Membrane Switches With CapTouch Buttons OEM

LGF Backlighting Membrane Switches With CapTouch Buttons OEM

CapTouch Buttons Backlighting Membrane Switches

OEM Backlighting Membrane Switches

LGF button membrane switch

Place of Origin:


Brand Name:



Rohs, Reach, UL, CE, ISO

Model Number:


Contact Us

Request A Quote
Product Details
2.0mm PMMA
Back Adhesive:
LGF Backlighting Technology
Light Source:
Screen Printing
1.0mm Pitch ZIF
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
2pcs into a PP bag then into hard carton box.
Delivery Time
15-16 working days
Payment Terms
Supply Ability
Product Description

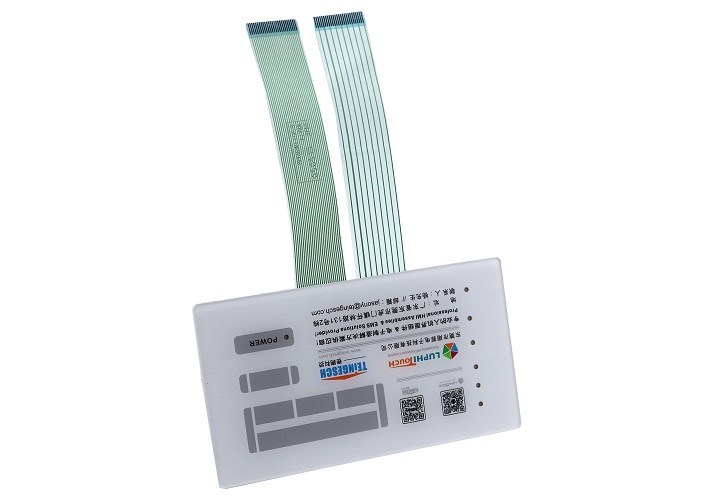

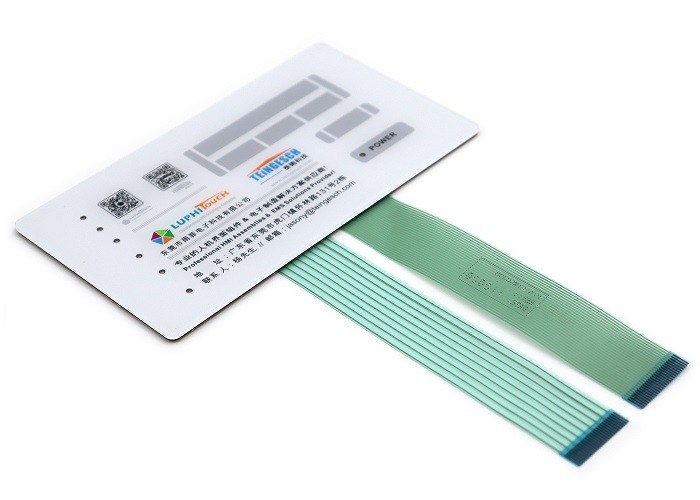

LGF Backlighting Membrane Switch with CapTouch Buttons


LGF Backlighting Membrane Switches Introduction:LGF Backlighting Membrane Switches With CapTouch Buttons OEM 0

LGF means light guide film.

LGF backlighting is a new technology for membrane switches backlighting solution;

Design LGF by ourself;

Rohs and Reach compliance;

Backlighting: LGF backlighting technology;

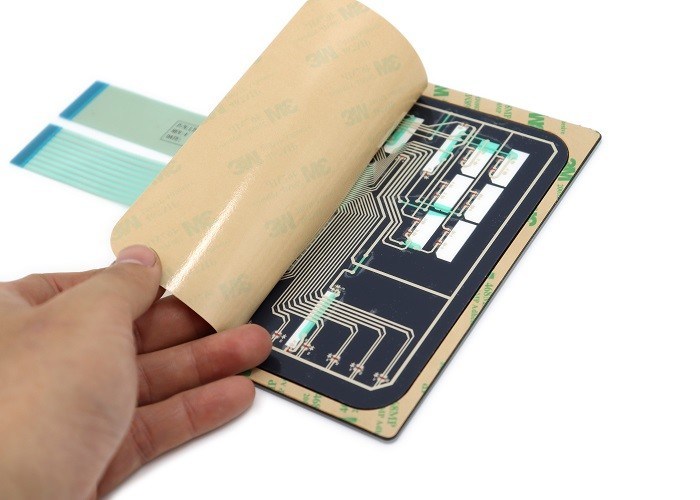

Polymide FPC circuit layer;

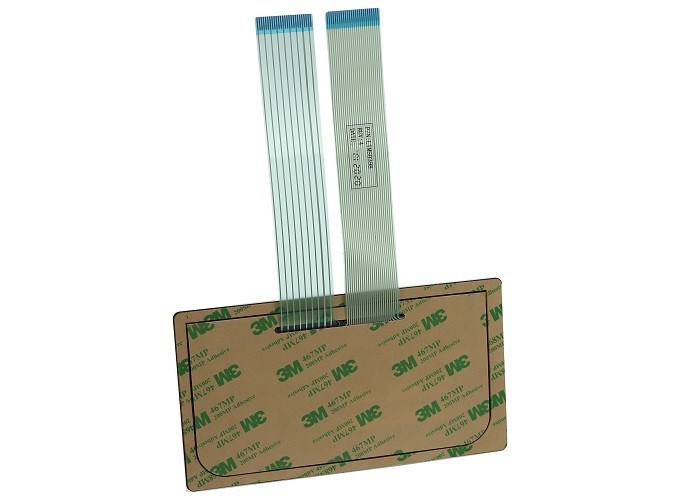

Raw Materials: Autotex Polyester, 3M467 adhesives;

Buttons: round embossed with tactile metal domes;

Buttons Life: more than 1million times;


Characters and Advantages of LuphiTouch's LGF Backlighting Membrane Switches:

Competitive prices;

High quality and reliability;

Skillful workers with rich experiences;

LGF backlighting and easy-clean surface;

Multi-colors screen printing on top surface overlay;

Support digital printing(with color gradient);

Providing engineering design service;

100% full appearance inspection and function testing;

Accept frame orders;


Backlighting Membrane Switch means that the keypad can have light through it. The Logo, button rings, symbols etc. can be backlighted. There will be a light source from the backside of the keypad to light the graphic overlay and provide the signal information to users or when the product used in the night or dark environment it can light the graphic and make the users or workers make buttons press operation correctly and avoid any wrong operations.


The LGF backlighting solution is the current most popular backlighting technology. LGF is a light guide film. LGF itself is not a light source. It couldn't produce the light. It still needs the LEDs assembled on the circuit layer to produce the light source. But LGF can guide the light from the LEDs to the top overlay evenly. For this backlighting keypad, it can save the LEDs quantity and it also can get an even backlighting effect with fewer LEDs. But in this way, the difficulty is adjusting the refraction dots on the LGF layer. Adjust the direction of dots, density, position, etc. And its tool fees is also not cheap.
