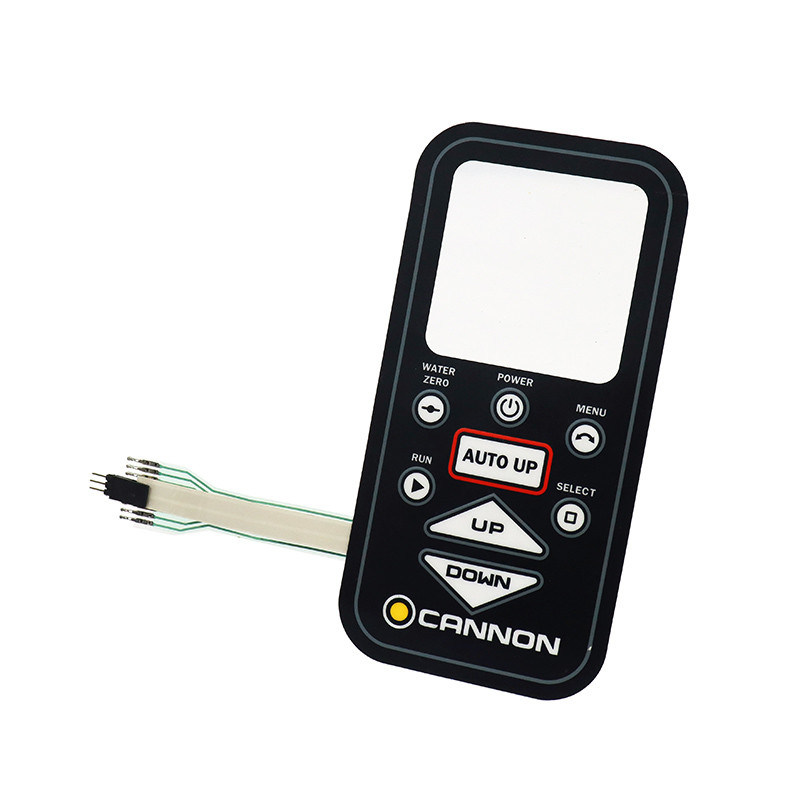

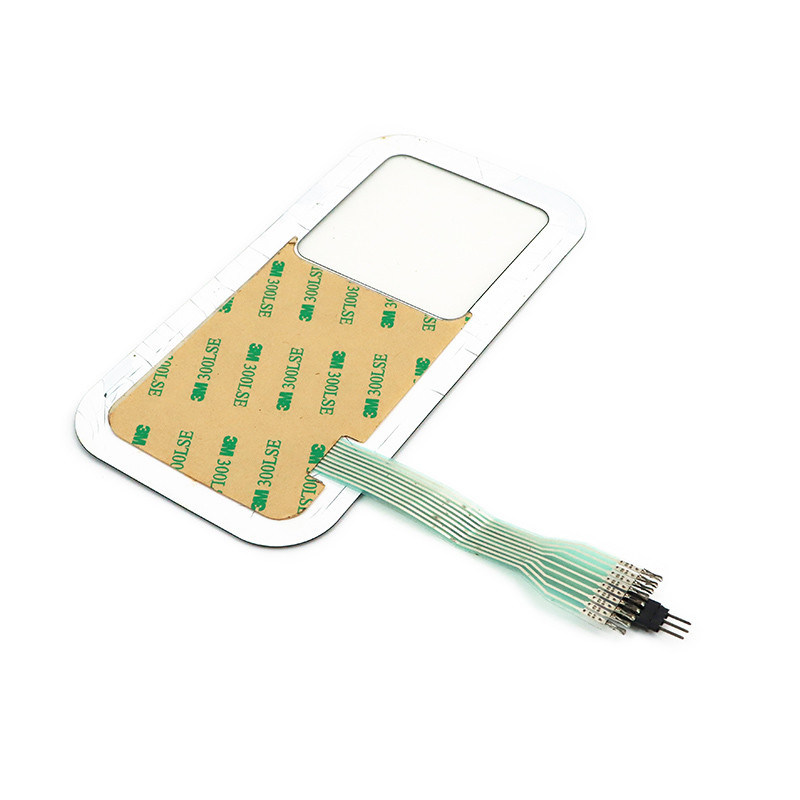

Flexible Membrane Switch Waterproof IP67

Flexible Membrane Switch Waterproof IP67

Place of Origin:


Brand Name:


Model Number:


Contact Us

Request A Quote
Product Details
Life Expectancy:
1,000,000 Cycles
Polyester, Polycarbonate, PET
Current Rating:
1A, 2A, 5A, 10A
Storage Temperature:
-40℃ To +85℃
Contact Resistance:
100mΩ Max
Voltage Rating:
Operating Temperature:
-40℃ To +85℃
Payment & Shipping Terms
Product Description

Product Description:

We offer high-quality Waterproof Membrane Switches that are RoHS compliant and are ideal for use in industrial environments. With a voltage rating of 3-5V and maximum contact resistance of 100mΩ, these switches are highly efficient and durable with a long service life. They are also customizable in terms of size to suit the needs of different users. Additionally, these waterproof membrane switches have a wide operating temperature range of -40℃ to +85℃, making them highly reliable in any environment. Our graphic overlay membrane switches are designed to provide superior performance for all kinds of waterproof membrane keypad requirements. With these membrane switches, users can enjoy a hassle-free operation with minimum maintenance.



  • Product Name: Waterproof Membrane Switches
  • Voltage Rating: 3-5V
  • Storage Temperature: -40℃ To +85℃
  • Type: Waterproof Membrane Switches
  • Current Rating: 1A, 2A, 5A, 10A
  • Life Expectancy: 1,000,000 Cycles
  • Features: PET Circuit Medical Membrane Switch, Graphic Overlay Membrane Switch, Components Populated Membrane Switch Keypad

Technical Parameters:

Property Description
Storage Temperature -40℃ To +85℃
Type Waterproof Membrane Switches
Current Rating 1A, 2A, 5A, 10A
IP Rating IP67
Life Expectancy 1,000,000 Cycles
Color Customized
Contact Resistance 100mΩ Max
Voltage Rating 3-5V
Operating Temperature -40℃ To +85℃
Size Customized
Keywords Waterproof Membrane Keypad, 1mm custom keypad membrane, polyester fpc membrane switches


Waterproof Membrane Switches are designed for applications that require a waterproof seal and superior performance in extreme environments. The switches come in a variety of sizes and configurations, making them ideal for medical, industrial, and consumer applications. They are made from high-grade materials such as polyester, polycarbonate, and PET. These materials have excellent resistance to water, dirt, and dust, making them ideal for use in wet and dusty environments. Custom brands such as ISO and Pillow Tactile can be used to meet specific customer requirements. The Operating Temperature range for these switches is from -40℃ To +85℃ and have an IP Rating of IP67 for ultimate protection. Waterproof Membrane Switches are the perfect choice for applications where durability and reliability are required.



Custom Waterproof Membrane Switches

  • Brand Name: Custom
  • Model Number: No
  • Place of Origin: China
  • Operating Temperature: -40℃ To +85℃
  • Contact Resistance: 100mΩ Max
  • IP Rating: IP67
  • Current Rating: 1A, 2A, 5A, 10A
  • Size: Customized
  • Features: medical membrane switch iso, pet circuit medical membrane switch, Graphic Overlay Membrane Switch

Support and Services:

Technical Support and Service for Waterproof Membrane Switches

Our team offers superior technical support and service for our waterproof membrane switches, ensuring that you have the best product for your needs. Our technicians are highly trained and experienced in the field of membrane switch engineering and can provide reliable support and advice on the installation, maintenance and repair of these switches.

We offer personalized technical support to our customers and can provide tailored solutions based on their individual requirements. We also provide on-site service and repair, ensuring that your waterproof membrane switch is always in perfect working condition.

Our team is available 24 hours a day to answer your questions and provide technical support. If you have any queries or concerns regarding the use of our waterproof membrane switches, please don't hesitate to contact us.


Packing and Shipping:

Packaging and Shipping

Waterproof membrane switches are packaged and shipped in an appropriate shipping container to protect the product from moisture, dust, and other elements. The container should be sealed properly to ensure its integrity, and the product should be labeled clearly with the customer’s name, address, and contact information. All shipments should be traceable and insured.



Q: What is Waterproof Membrane Switches?

A: Waterproof Membrane Switches are an electrical switch for controlling circuits. They are made of a thin, waterproof material such as polyester or polycarbonate that is laminated with metal or plastic contacts. They are commonly used in industrial, medical, automotive, and consumer electronics applications.

Q: What is the Brand Name and Model Number of Waterproof Membrane Switches?

A: The Brand Name of Waterproof Membrane Switches is Custom and the Model Number is No.

Q: Where are Waterproof Membrane Switches made?

A: Waterproof Membrane Switches are made in China.

Q: What are the advantages of using Waterproof Membrane Switches?

A: The advantages of using Waterproof Membrane Switches include: they are waterproof, durable, and have a low profile; they are also resistant to dust, dirt, and other contaminants; and they are available in a variety of shapes and sizes.

Q: What applications are Waterproof Membrane Switches used for?

A: Waterproof Membrane Switches are commonly used in industrial, medical, automotive, and consumer electronics applications.
