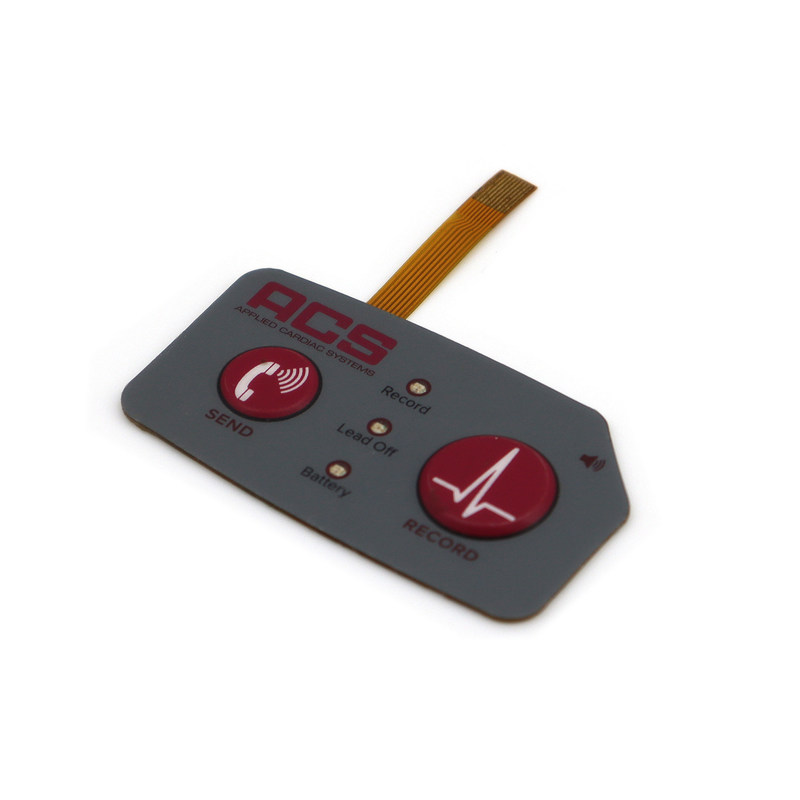

IP67 Rated Waterproof Membrane Switches for Customized Industrial Equipment

IP67 Rated Waterproof Membrane Switches for Customized Industrial Equipment

Place of Origin:


Brand Name:


Model Number:


Contact Us

Request A Quote
Product Details
Operating Temperature:
-40℃ To +85℃
Life Expectancy:
1,000,000 Cycles
Current Rating:
1A, 2A, 5A, 10A
Storage Temperature:
-40℃ To +85℃
Contact Resistance:
100mΩ Max
Polyester, Polycarbonate, PET
Payment & Shipping Terms
Product Description

Product Description:

Waterproof Membrane Switches

Waterproof Membrane Switches are advanced control panels that are designed to withstand harsh environments and provide reliable operation. These switches are widely used in various industries such as medical, industrial, and consumer electronics. They are highly customizable and can be tailored to meet specific design and performance requirements.

Product Overview

Waterproof Membrane Switches are made of polyester FPC (Flexible Printed Circuit) which is a highly durable and flexible material. This allows the switches to withstand extreme temperatures, moisture, and chemicals without compromising their performance. The switches are designed to be low profile and lightweight, making them suitable for use in compact devices.

Key Features
  • Contact Resistance: These switches have a maximum contact resistance of 100mΩ, ensuring a reliable and stable connection.
  • Current Rating: Our switches are available in a wide range of current ratings, including 1A, 2A, 5A, and 10A, to meet the power requirements of different applications.
  • Customized Size: We understand that every application has unique design requirements, which is why our switches can be customized to fit any size and shape, making them suitable for a wide range of devices.
  • Operating Temperature: These switches have an operating temperature range of -40℃ to +85℃, ensuring reliable operation even in extreme conditions.
  • IP Rating: Our switches have an IP67 rating, making them dustproof and waterproof, ensuring reliable operation in harsh and wet environments.

Waterproof Membrane Switches are used in a variety of applications, including:

  • Medical devices
  • Industrial equipment
  • Consumer electronics
  • Marine equipment
  • Automotive controls
  • And more

Our Waterproof Membrane Switches are manufactured to meet the highest quality standards and are certified by ISO for medical applications and RoHS for industrial applications.


Waterproof Membrane Switches are essential components for devices that require reliable operation in harsh environments. With their customizable size, wide range of current ratings, and high IP rating, these switches are suitable for a wide range of applications in various industries. Our switches are manufactured with high-quality materials and are certified to meet industry standards, ensuring reliable and long-lasting performance.


  • Product Name: Waterproof Membrane Switches
  • Storage Temperature: -40℃ To +85℃
  • Operating Temperature: -40℃ To +85℃
  • Current Rating: 1A, 2A, 5A, 10A
  • Life Expectancy: 1,000,000 Cycles
  • Material: Polyester, Polycarbonate, PET
  • Key Features:
    • Pillow Tactile Membrane Switches
    • ROHS Compliant Industrial Membrane Switches
    • Highly Durable and Waterproof Design
    • Wide Range of Operating and Storage Temperatures
    • Available in Various Current Ratings
    • Long Life Expectancy of 1,000,000 Cycles
    • Made with High-Quality Materials such as Polyester, Polycarbonate, and PET

Technical Parameters:

Attribute Technical Parameter
Voltage Rating 3-5V
Life Expectancy 1,000,000 Cycles
Current Rating 1A, 2A, 5A, 10A
Color Customized
Size Customized
Operating Temperature -40℃ To +85℃
Storage Temperature -40℃ To +85℃
Type Waterproof Membrane Switches
Material Polyester, Polycarbonate, PET
Contact Resistance 100mΩ Max
Key Features Embossed waterproof membrane switches, RoHS industrial membrane switches, Pillow tactile membrane switches


Waterproof Membrane Switches for Various Applications
Brand Name: Custom
Model Number: No
Place of Origin: China
Current Rating: 1A, 2A, 5A, 10A
Color: Customized
Voltage Rating: 3-5V
Storage Temperature: -40℃ To +85℃
Type: Waterproof Membrane Switches

Waterproof membrane switches, also known as pet circuit medical membrane switch, are a type of electronic keypad that is designed to withstand harsh environments and extreme conditions. These switches are made with a thin layer of polyester film, which acts as a flexible circuit board, and are coated with a layer of protective material to make them waterproof.

  • Industrial Control Panels
  • Medical Equipment
  • Marine Navigation Systems
  • Aerospace and Aviation Control Systems
  • Outdoor Electronic Devices
  • Automotive Control Panels

Our waterproof membrane switches can be customized to fit your specific needs. We offer a 1mm custom keypad membrane, which can be designed with any layout, shape, and size. This allows for a unique and ergonomic design that meets the requirements of your application.


Our membrane switches come populated with electronic components, such as LEDs, resistors, and capacitors, to create a fully functional membrane switch keypad. This eliminates the need for additional wiring and reduces the risk of loose connections, ensuring the reliability of the switch.

Waterproof Design:

The waterproof membrane keypad is designed with a sealed construction, using a combination of adhesives and coatings, to prevent any moisture or dust from entering the switch. This makes it ideal for use in outdoor and harsh environments where traditional keypads may fail.

Industrial Control:

The industrial control membrane switch is specifically designed for use in control panels and machinery. It offers a durable and reliable solution for controlling various functions, such as temperature, speed, and pressure, in industrial settings.

Easy to Install:

Our waterproof membrane switch panel is easy to install and can be mounted on any flat surface using adhesive or screws. This makes it a versatile solution for a wide range of applications.


Waterproof membrane switches are a reliable and durable solution for various applications that require a waterproof and user-friendly keypad. With customizable options and a range of electronic components, these switches can be tailored to fit the specific needs of your application.


Custom Waterproof Membrane Switches
Brand Name: Custom
Model Number: No
Place of Origin: China
Current Rating: 1A, 2A, 5A, 10A
Life Expectancy: 1,000,000 Cycles
Size: Customized
Type: Waterproof Membrane Switches
IP Rating: IP67

Our custom waterproof membrane switches are designed to meet your specific needs and requirements. With our advanced technology and expertise, we can provide high quality embossed waterproof membrane switches that are both durable and functional.

Our 1mm custom keypad membrane offers a slim and compact design, making it suitable for various applications. It is highly responsive and can withstand frequent use, ensuring a long lifespan of 1,000,000 cycles.

The Graphic Overlay Membrane Switch is a key component of our waterproof membrane switches. It features a custom design with clear and vibrant graphics, allowing for easy operation and enhancing the overall user experience.

Packing and Shipping:

Packaging and Shipping of Waterproof Membrane Switches

Our Waterproof Membrane Switches are carefully packaged to ensure safe delivery to our customers. Each switch is individually wrapped in plastic and then placed in a sturdy cardboard box to prevent any damage during shipping.

For larger orders, we use pallets to pack the switches and secure them with shrink wrap for added protection. Additionally, we can customize the packaging according to our customers' specific requirements.

We offer various shipping options to meet our customers' needs, including express delivery, air freight, and sea freight. Our experienced logistics team will work closely with our customers to determine the most efficient and cost-effective shipping method.

Once the switches are shipped, we will provide our customers with a tracking number so they can easily monitor the delivery status. We take great care in ensuring timely and safe delivery of our products.

Thank you for choosing our Waterproof Membrane Switches. We are committed to providing high-quality products and excellent customer service. If you have any questions or concerns regarding our packaging and shipping, please do not hesitate to contact us.
